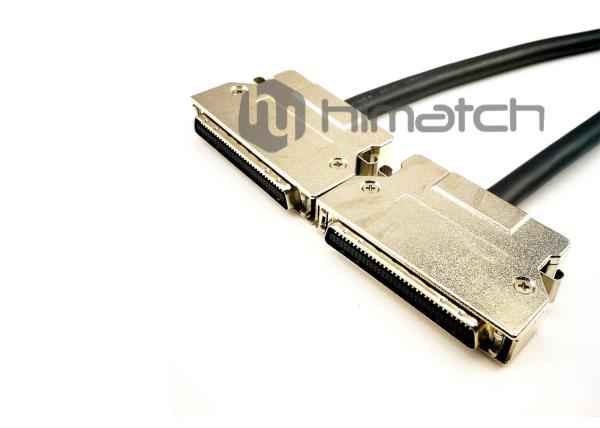

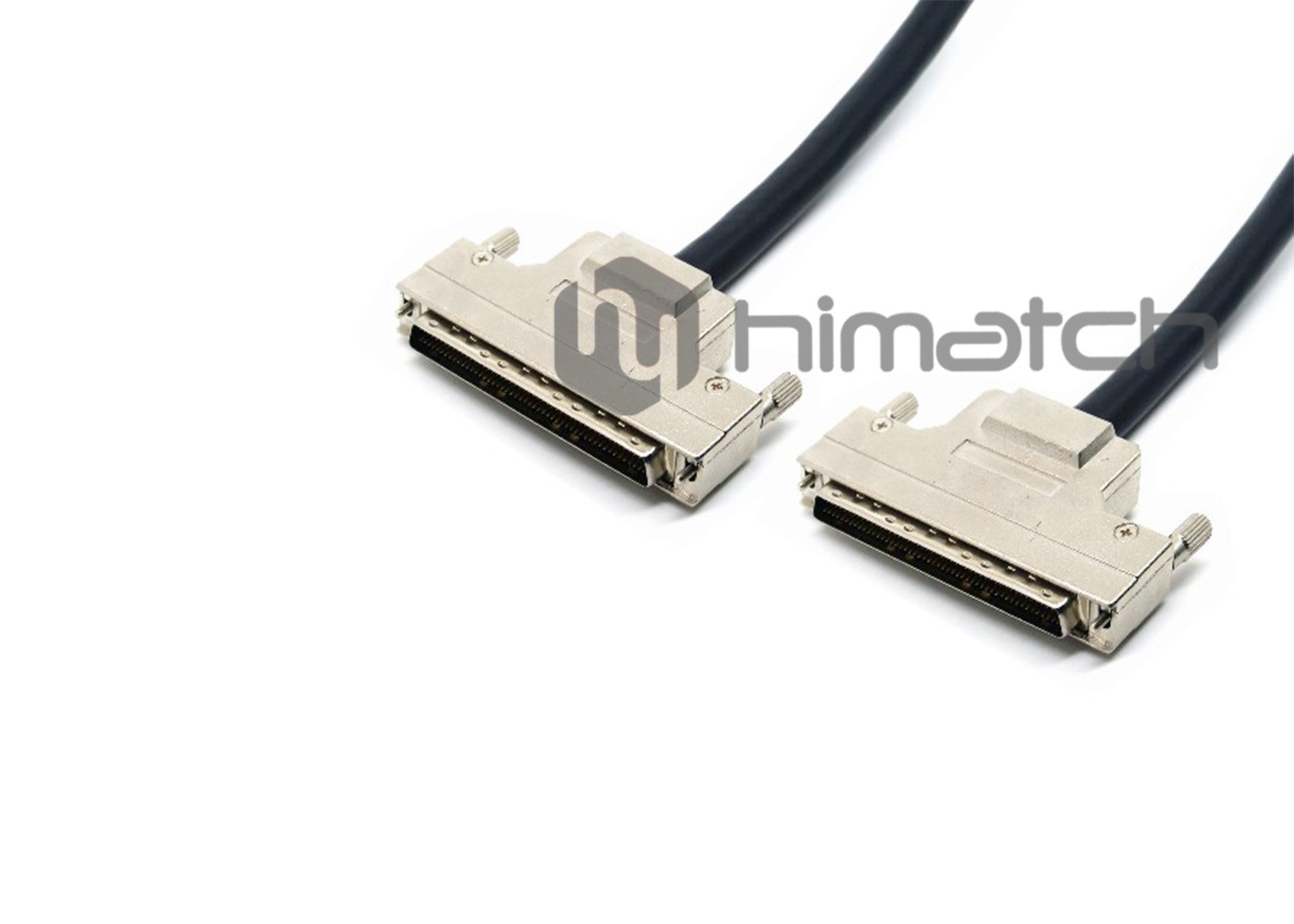

Metal cover screw SCSI DB 100pin male To SCSI DB 100 pin male Data Cable
Description:
Himatch's SCSI MDR 100pin cable are constructed of UL certified high quality MDR 100pin male connector with Zinc die cast cover and thumbscrew on both end, 50pairs UL verified shielded cable They offer outstanding quality, durability, and high performance for industrial communication..
Specification:
| Brand | Himatch | Model No. | | Conductor | TC |
| Cores | 50P | Guage: | 28AWG | Insulation | PE/PVC |
| Jacket | Lead Free PVC | Cable OD | 14.0mm | Color | Black |
| Cable | Round | For | Communication device | Certification | UL CSA |
| Voltage | 30V | | | OEM | Yes |
Features:
Metal cover provide good EMI protection.
100% electronically tested for functionality
Low noise and good performance in skew
Overall foil and braid shielded provides excellent EMI/RFI protection ( shielding cable only)
RoHS and REACH compliant
Application:
Communication base station.
Himatch manufacture variety of industrial cables, including communication cable, machine vision cable, camera link cable assemblies, PoE gige cables with, SCSI cables, MDR cables, D-sub cables, sensor cables, detective cables, we can can work with you to create a completely customized cable or multi-legs harness. Camera link to SCSI and other hybrids
We also can provide additional service, such as ferrites, logo, special pin out, labels, bar-codes and custom packing, logo
Standard MDR 68pin plug to MDR68 plug communication cable, available from 0.5 meter to 20 meters
MDR 14pin cable, MDR 20pin cable, MDR 26pin cable, MDR36pin cables, MDR50pin cables, MDR68pin cables, MDR100pin cables,
